Product Details

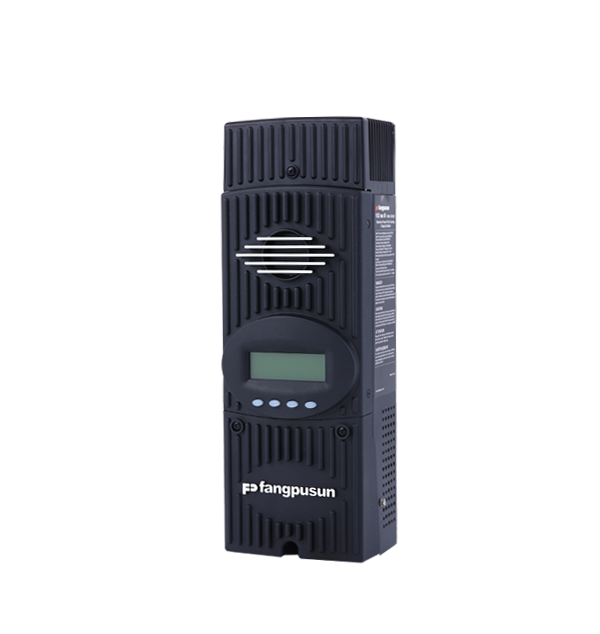

Fangpusun FLEXmax MPPT
MPPT60 MPPT80
The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from fangpusun.The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FL EXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104 F(40 C)
Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by fangpusun, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete
system integration.
FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.
Product feature
→Increases PV Array Output by up to 30%
→Advanced Continuous Maximum Power Point Tracking
→Full Power Output in Ambient Temperatures up to104°F (40°C).
→Battery Voltages from 12 VDC to 60 VDC
→Programmable Auxiliary Control Output
→Built-in 128 days of Data Logging
→Fully Network Integrated and Programmable
Display
→Text LCD display for operating parameters,fault messages,self test
Options
→Menu-driven operation
→Programming by buttons
Certificates
→Compliant with European Standards (CE)
→RoHS compliant
→SGS
→ISO 9001
→Made in China

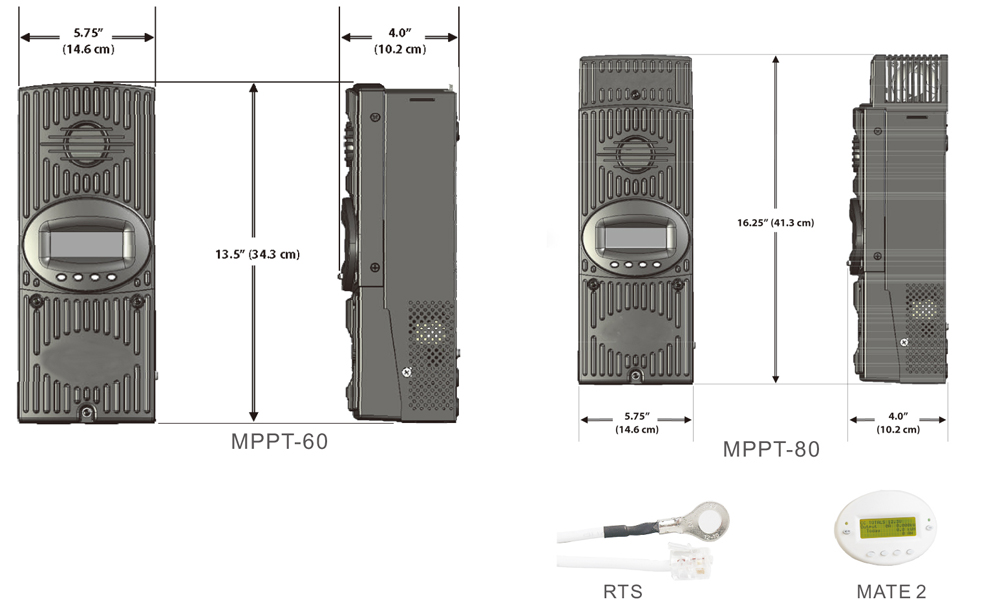

Overall dimension

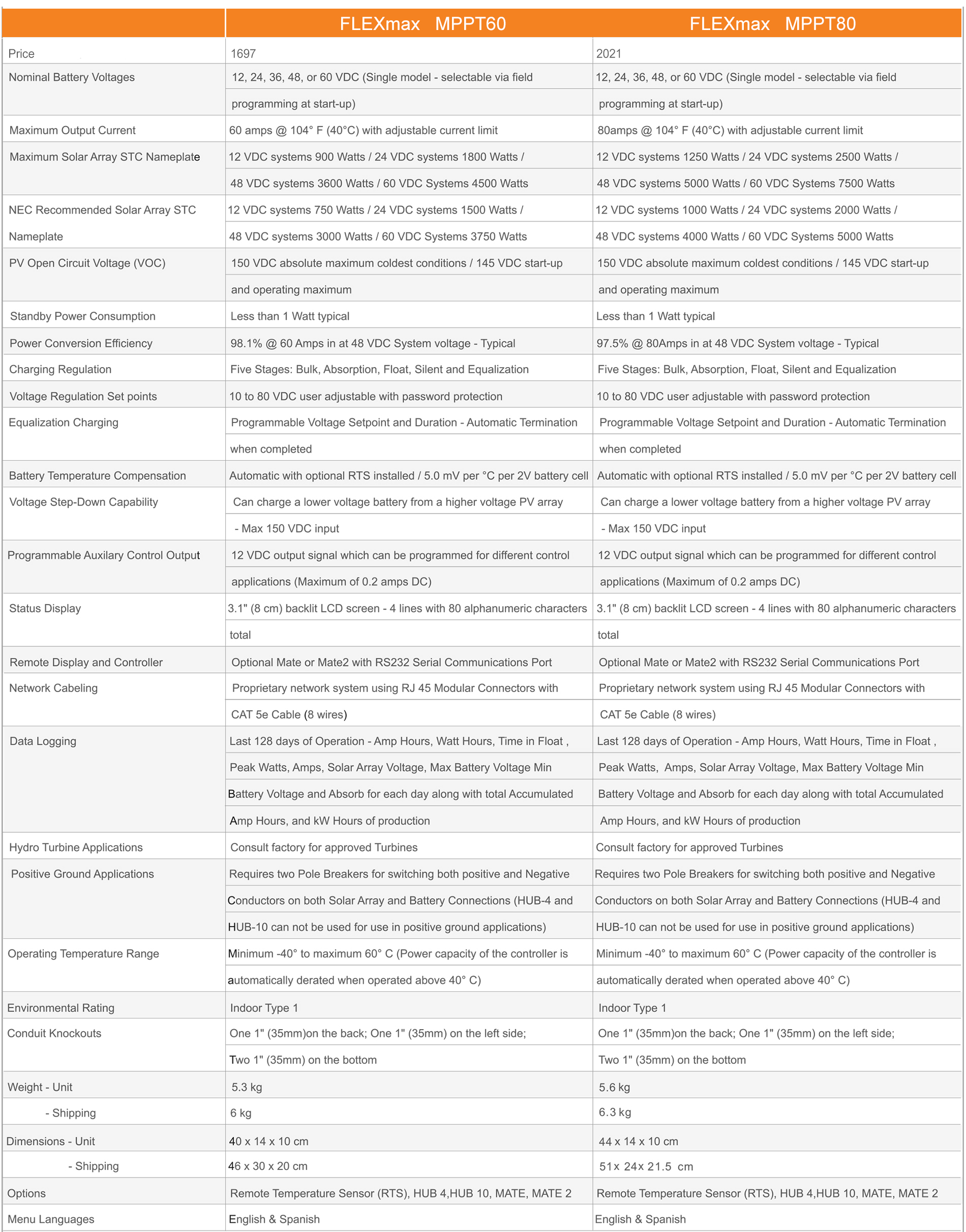

Technical data
